System Biosciences

Cumate-Inducible (CuO) EEV cloning and expression vector

(No reviews yet) Write a Review
SKU:
PBQM800A-1
Availability:
Usually Shipped in 5 Working Days
Size:
10 ug
Shipping Temperature:
Blue Ice/ Dry Ice
  • Cumate-Inducible (CuO) EEV cloning and expression vector
  • Cumate-Inducible (CuO) EEV cloning and expression vector
€903.00

Description

Cumate-Inducible (CuO) EEV cloning and expression vector. Cat# EEV610A. Supplier: SBI System Biosciences

Overview

Robust, titratable gene expression delivered using the PiggyBac Transposon System

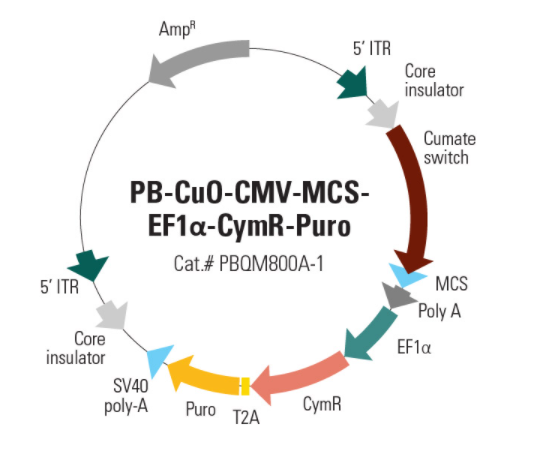

More than just easy, consistent transgenesis with PiggyBac, the PB-Cuo-CMV-MCS-EF1α-CymR-Puro Inducible cDNA Cloning and Expression Vector (Cat.# PBQM800A-1) adds in the robust and titratable gene expression control of SBI’s cumate-inducible expression system. Clone your gene-of-interest into the MCS for cumate-inducible expression (note that Cat.# PBQM812A-1 adds GFP expression to this system for easy tracking).

PB-Cuo-CMV-MCS-EF1α-CymR-Puro Inducible cDNA Cloning and Expression Vector (Cat.# PBQM800A-1) also co-expresses the cumate repressor, CymR, and puromycin resistance from the EF1α promoter.

With the PiggyBac Transposon System, you can:

  • Make transgenic cell lines with a single transfection
  • Integrate multiple PiggyBac Vectors in a single transfection
  • Insert an expression cassette into human, mouse, and rat cells
  • Deliver virtually any-sized DNA insert, from 10 – 100 kb
  • Choose from PiggyBac Vectors that express your gene-of-interest from constitutive or inducible promoters and include a variety of markers
  • Determine the number of integration events with the PiggyBac qPCR Copy Number Kit (# PBC100A-1)

Customer Agreements Academic customers can purchase PiggyBac Transposon System components for internal research purposes for indefinite use, whereas commercial customers must sign a customer agreement for a four-month, limited-use license to evaluate the technology. For end user license information, see the following:

  • Academic Customers—End-User License Information
  • Commercial Customers—End-User License Information

* SBI is fully licensed to distribute PiggyBac vectors as a partnership with Hera BioLabs, Inc.

How It Works

The PiggyBac Transposon System’s Cut-and-Paste Mechanism

The efficient PiggyBac Transposon System uses a cut-and-paste mechanism to transfer DNA from the PiggyBac Vector into the genome. If only temporary genomic integration is desired, the Excision-only PiggyBac Transposase can be transiently expressed for footprint-free removal of the insert, resulting in reconstitution of the original genome sequence.

Figure 1. The PiggyBac Transposon System’s cut-and-paste mechanism.

  • The Super PiggyBac Transposase binds to specific inverted terminal repeats (ITRs) in the PiggyBac Cloning and Expression Vector and excises the ITRs and intervening DNA.
  • The Super PiggyBac Transposase inserts the ITR-Expression Cassette-ITR segment into the genome at TTAA sites.
  • The Excision-only Super PiggyBac Transposase can be used to remove the ITR-Expression Cassette-ITR segment from the genome, for footprint-free removal

Tightly-controlled, inducible gene expression

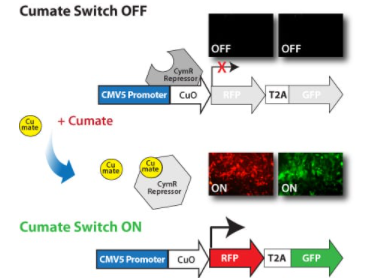

Get robust, titratable gene expression with low background using SBI’s cumate-inducible vectors. These vectors take advantage of CymR, a repressor that binds to cumate operator sequences (CuO) with high affinity in the absence of cumate, a non-toxic small molecule. Providing much lower background expression than similar systems, SBI’s cumate-inducible vectors can provide up to 32-fold induction of gene expression.

  • Robust—increase expression up to 32-fold
  • Adjustable—tune expression levels by titrating the amount of cumate
  • Reversible—turn expression on, then off, then on again
  • Powerful—suitable for in vivo applications

Supporting Data

Tight expression control with low background

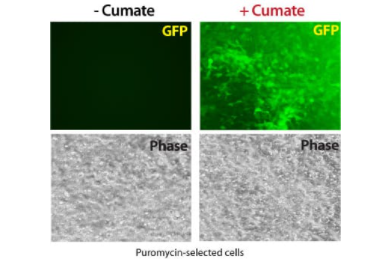

Figure 2. In the absence of cumate, the cumate-inducible PiggyBac Vector shows undetectable levels of expression.

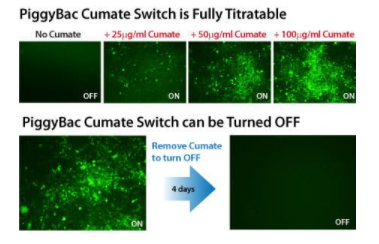

Figure 3. The PiggyBac cumate switch is titratable and can be turned off.
