Description

Description

Mouse Nanog Differentiation Reporter (pRedZeo, plasmid). Cat# SR10044AA. Supplier: SBI System Biosciences

Overview

Monitor differentiation in real time

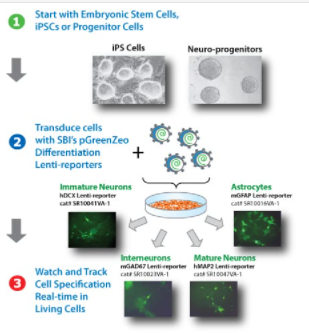

With SBI’s line of pGreenZeo, pRedZeo, and pRedTK Differentation Reporter Vectors, you can monitor stem cell differentiation in real time. These vectors leverage our reliable lentivector technology and save you time—our pre-built differentiation reporters come as ready-to-package lentivector plasmids or ready-to-transduce pre-packaged lentivirus. The Mouse Nanog pRedZeo Differentiation Reporter co-expresses RFP and zeomycin resistance from the mouse Nanog promoter/enhancer elements, enabling tracking of pluripotency/differentiation using RFP fluorescence and selection for the desired cells using zeomycin.

Create stable differentiation-reporting cell lines
Monitor multiple lineages simultaneously
Track differentiation in live cells in real time

Please note that these vectors only function properly when transduced. Transfection keeps the constitutive RSV promoter intact, leading to nonspecific expression of the reporter genes.

Choose the differentiation reporter that’s right for you

Myogenic differentiation reporters

Hematopoietic differentiation reporters

Neural differentiation reporters

Structural differentiation reporters

Supporting Data

See some of our differentiation reporters in action

SBI’s differentiation reporters are used in a number of papers. The data shown below are just one example (from Ravin R, Hoeppner DJ, Munno DM, Carmel L, Sullivan J, Levitt DL, Miller JL, Athaide C, Panchision DM, McKay RD. Potency and fate specification in CNS stem cell populations in vitro. Cell Stem Cell. 2008 Dec 4; 3(6):670-80. PMID: 19041783)

Figure 1. Live imaging of neuronal differentiation. Ravin, et al, used SBI’s Mouse GFAP pGreenFire Differentiation Reporter (Cat.# SR10016VA-1), which drives GFP expression from the glial fibrillary acidic protein promoter, to watch mouse neural stem cells differentiate into a network of mature neurons, oligodendrocytes, and astrocytes over the course of seven days. The periodic “flashes” seen in this video correspond to fluorescent photos taken of the growing cells to identify the GFP signals. The final photo taken after the network formation is shown below the video (color added). Among the network of neurons, only the astrocytes are bright green, demonstrating the specificity of SBI’s mouse GFAP pGreenFire Differentiation Reporter.
