System Biosciences

pGF-AP1-mCMV-EF1-Puro (plasmid)

(No reviews yet) Write a Review
SKU:
TR201pa-p
Availability:
Usually Shipped in 5 Working Days
Size:
10 ug
Shipping Temperature:
Blue Ice/ Dry Ice
  • pGF-AP1-mCMV-EF1-Puro (plasmid)
  • pGF-AP1-mCMV-EF1-Puro (plasmid)
€849.00

Description

pGF-AP1-mCMV-EF1-Puro (plasmid). Cat# TR201pa-p. Supplier: SBI System Biosciences

Study oncogenic signaling by co-expressing dscGFP and luciferase in response to AP1 activity at AP1 transcriptional response elements
  • Sort responsive cells with dscGFP
  • Measure activity with luciferase
  • Leverage SBI’s highly-regarded lentivectors
  • Create stable signaling pathway reporter cell lines
  • Introduce reporters into difficult-to-transfect cell types, including primary and non-dividing mammalian cell lines

Products

Overview

Monitor oncogenic signaling in real time With SBI’s line of pGreenFire1 Pathway Reporters, you can monitor signal transduction in real time. These vectors leverage our reliable lentivector technology and save you time—our pre-built signal transduction pathway reporters come as ready-to-package lentivector plasmid*, ready-to-transduce pre-packaged lentivirus, and as a ready-to-study cell line.

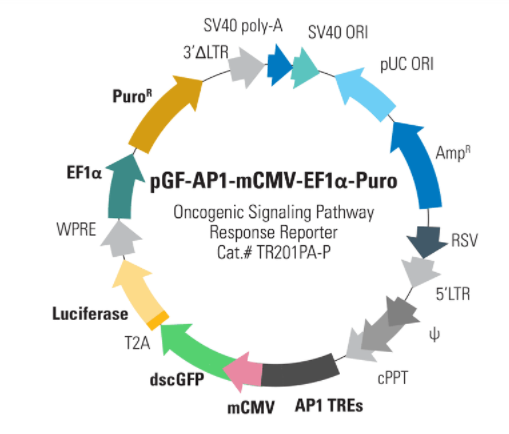

The pGF-AP1-mCMV-EF1α-Puro Lentivector co-expresses a destabilized copepod GFP (dscGFP; 2-hour half-life) and luciferase from AP1 transcriptional response elements (TREs) paired with a minimal CMV promoter (mCMV). The mCMV promoter alone delivers negligible expression, but when downstream of AP1 TREs, drives expression of dscGFP and luciferase in response to AP1 activity. The result is the ability to quantitatively measure AP1 activity at AP1 TREs by fluorescence and luciferase activity.
  • Sort responsive cells with dscGFP
  • Measure activity with luciferase
  • Leverage SBI’s highly-regarded lentivectors
  • Create stable signaling pathway reporter cell lines
  • Introduce reporters into difficult-to-transfect cell types, including primary and non-dividing mammalian cell lines.

The pGF-AP1-mCMV-EF1α-Puro Lentivector is available as a lentivector, pre-packaged virus, and a stable cell line created from the pGF-AP1-mCMV-EF1α-Puro Lentivector transduced into 293 cells.

*Please note that these vectors only function properly when transduced. Transfection keeps the constitutive RSV promoter intact, leading to nonspecific expression of the reporter genes.

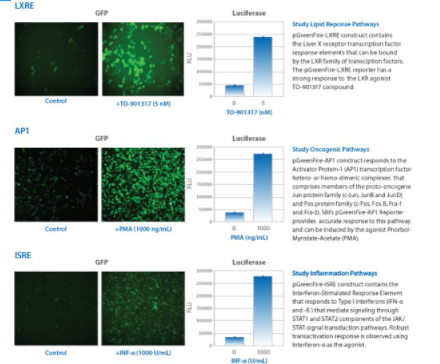

Supporting Data

See our transcriptional response element reporters in action

Monitor oncogenic pathway reporters

Develop target gene-specific LXR agonists that could regulate reverse cholesterol transport without increasing lipogenesis

General pGreenFire data examples

Monitoring NF-κB transactivation
