T2A-GFP Co-Expression HR Targeting Vector [T2A-GFP-pA-loxP-EF1α-RFP-T2A-Puro-pA-LoxP-MCS]

(No reviews yet) Write a Review
SKU:
HR130PA
Availability:
Usually Shipped in 5 Working Days
Size:
10 ug
Shipping Temperature:
Blue Ice/ Dry Ice
  • T2A-GFP Co-Expression HR Targeting Vector [T2A-GFP-pA-loxP-EF1α-RFP-T2A-Puro-pA-LoxP-MCS
  • T2A-GFP Co-Expression HR Targeting Vector [T2A-GFP-pA-loxP-EF1α-RFP-T2A-Puro-pA-LoxP-MCS
€1,100.00

Description

T2A-GFP Co-Expression HR Targeting Vector [T2A-GFP-pA-loxP-EF1α-RFP-T2A-Puro-pA-LoxP-MCS]. Cat# HR130PA. Supplier: SBI System Biosciences

Overview

Co-express any gene with GFPLearn more about the expression of any gene using the PrecisionX™ Gene Tagging HR Targeting Vector (T2A-GFP-pA-LoxP-EF1α-RFP-T2A-Puro-pA-LoxP-MCS) which integrates a T2A-GFP cassette into the genome, enabling co-expression of GFP with your gene-of-interest. Clone your homology arms into the EcoRI site upstream of the GFP gene and into the MCS, and use puromycin selection and RFP-positive imaging to find integrants. After you’ve identified clones with your GFP-tagged gene, you can remove the selection cassette using the Cre-LoxP system (learn more about Cre-LoxP excision here).
Why use an HR targeting vector?Even though gene knock-outs can result from DSBs caused by Cas9 alone, SBI recommends the use of HR targeting vectors (also called HR donor vectors) for more efficient and precise mutation. HR donors can supply elements for positive or negative selection ensuring easier identification of successful mutation events. In addition, HR donors can include up to 6-8 kb of open reading frame for gene knock-ins or tagging, and, when small mutations are included in either 5’ or 3’ homology arms, can make specific, targeted gene edits.Choose the right HR Targeting Vector for your project
*All HR Target Vectors except PBHR100A-1 contain LoxP sites. Any sequences that are integrated between the two LoxP sites can be removed through transient expression of Cre Recombinase.
**The clever design of these HR Donors enables enrichment for on-target integration events. A PGK-hsvTK cassette is included outside of the homology arms. Because of this configuration, on-target integration that results from homologous recombination will not include the PGK-hsvTK cassette—only randomly-integrated off-target events will lead to integration of PGK-hsvTK and resulting TK activity. Therefore, TK selection will negatively select against off-target integrants. Click on any one of these vectors to see a diagram of how the negative selection works.

How It Works

At-a-glance—how to use an HR Targeting Vector to tag a gene

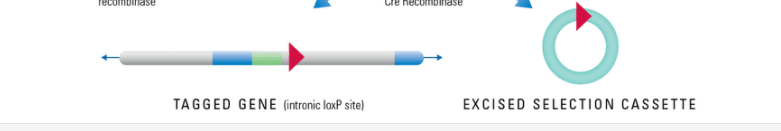

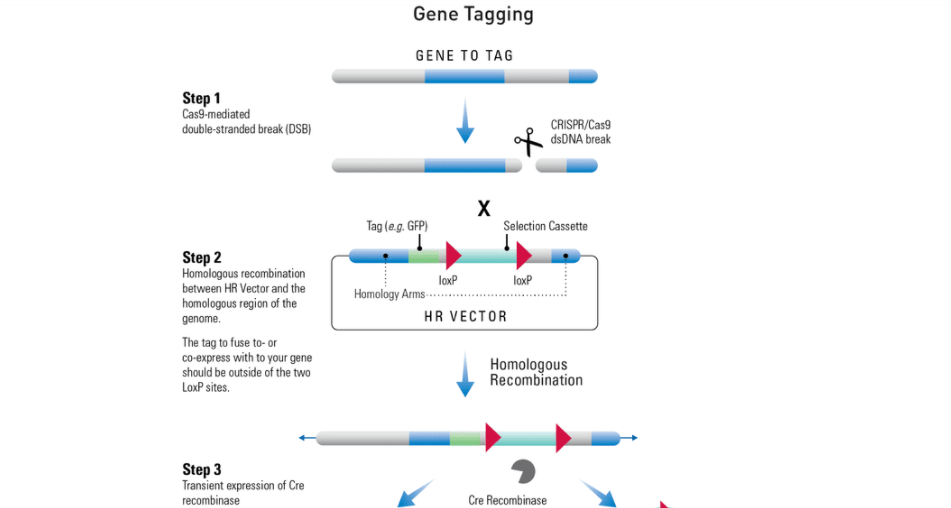

Figure 1. Tagging a gene using an HR Targeting Vector. Step 1: Cas9 creates a double-stranded break(DSB) in the genomic DNA at a site that is complimentary to the gRNA. Step 2: The DNA repair machinery is recruited to the DSB. In the presence of an HR Donor with homology to the region adjacent to the DSB (blue areas of the genomic and vector DNA) homologous recombination (HR) is favored over non-homologous end joining (NHEJ). The tag you’d like to co-express with a gene to should lie outside of the two LoxP sites. Result: The HR event leads to insertion of the region of the HR Donor Vector between the two homology arms—your tag co-expression cassette is integrated to the C-terminus of your gene-of-interest and your selection cassette is integrated into the gene. To remove the selection cassette (leaving behind the tag and a single LoxP site), transiently express Cre recombinase.

Genome engineering with CRISPR/Cas9

For general guidance on using CRISPR/Cas9 technology for genome engineering, including the design of HR Targeting Vectors, take a look at our CRISPR/Cas9 tutorials as well as the following application notes:

CRISPR/Cas9 Gene Knock-Out Application Note (PDF) »
CRISPR/Cas9 Gene Editing Application Note (PDF) »
CRISPR/Cas9 Gene Tagging Application Note (PDF) »
