System Biosciences
PB-EF1-GreenPuro-H1-MCS shRNA cloning and expression vector

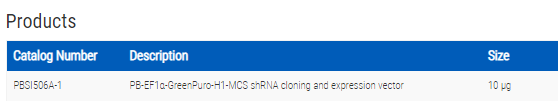

- SKU:
- PBSI506A-1
- Availability:
- Usually Shipped in 5 Working Days
- Size:
- 10 ug
- Shipping Temperature:
- Blue Ice/ Dry Ice
- Qualifications:
- Requires signed license from commercial customers
Description
PB-EF1-GreenPuro-H1-MCS shRNA cloning and expression vector. Cat# PBSI506A. Supplier: SBI System Biosciences
Leverage PiggyBac to produce shRNAs with this vector that co-express GFP and puromycin resistance from the EF1α promoter, and shRNA from the H1 promoter
- Make transgenic cell lines with a single transfection
- Integrate multiple PiggyBac Vectors in a single transfection
- Insert an expression cassette into human, mouse, and rat cells
- Deliver virtually any-sized DNA insert, from 10 – 100 kb
- Choose from PiggyBac Vectors that express your gene-of-interest from constitutive or inducible promoters and include a variety of markers
Overview
Easy and consistent shRNA delivery and expression
Not just for genes, the PiggyBac system is also an excellent choice for reliably producing shRNA. The PB-EF1α-GreenPuro-H1-MCS shRNA Cloning and Expression Vector (Cat.# PBSI506A-1) drives production of your shRNA from the strong H1 promoter. The vector also features GFP and puromycin resistance co-expressed from the moderate EF1α promoter, with co-expression mediated by the T2A element.
With the PiggyBac Transposon System, you can:
- Make transgenic cell lines with a single transfection
- Integrate multiple PiggyBac Vectors in a single transfection
- Insert an expression cassette into human, mouse, and rat cells
- Deliver virtually any-sized DNA insert, from 10 – 100 kb
- Choose from PiggyBac Vectors that express your gene-of-interest from constitutive or inducible promoters and include a variety of markers
- Determine the number of integration events with the PiggyBac qPCR Copy Number Kit (# PBC100A-1)
Academic customers can purchase PiggyBac Transposon System components for internal research purposes for indefinite use, whereas commercial customers must sign a customer agreement for a four-month, limited-use license to evaluate the technology. For end user license information, see the following:
- Academic Customers—End-User License Information
- Commercial Customers—End-User License Information
How It Works

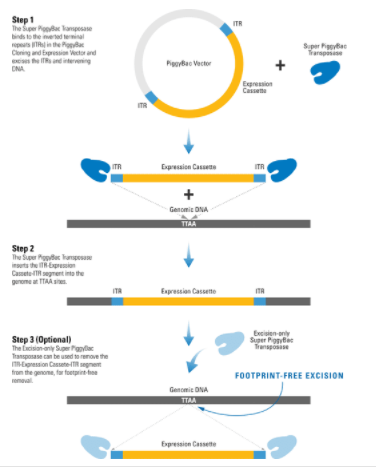

The PiggyBac Transposon System’s Cut-and-Paste Mechanism
The efficient PiggyBac Transposon System uses a cut-and-paste mechanism to transfer DNA from the PiggyBac Vector into the genome. If only temporary genomic integration is desired, the Excision-only PiggyBac Transposase can be transiently expressed for footprint-free removal of the insert, resulting in reconstitution of the original genome sequence.
- The Super PiggyBac Transposase binds to specific inverted terminal repeats (ITRs) in the PiggyBac Cloning and Expression Vector and excises the ITRs and intervening DNA.
- The Super PiggyBac Transposase inserts the ITR-Expression Cassette-ITR segment into the genome at TTAA sites.
- The Excision-only Super PiggyBac Transposase can be used to remove the ITR-Expression Cassette-ITR segment from the genome, for footprint-free removal
