System Biosciences

EV Shuttle Kit Mouse JAWS II Mouse bone marrow dendritic cell exosomes (10 rxn)

(No reviews yet) Write a Review
SKU:
EVS210A-1
Availability:
Usually Shipped in 5 Working Days
Size:
10 reactions
Shipping Temperature:
Dry Ice
  • EV Shuttle Kit Mouse JAWS II Mouse bone marrow dendritic cell exosomes (10 rxn)
  • EV Shuttle Kit Mouse JAWS II Mouse bone marrow dendritic cell exosomes (10 rxn)
$1,033.20

Description

EV Shuttle Kit Mouse JAWS II Mouse bone marrow dendritic cell exosomes (10 rxn). Cat# EVS210A. Supplier: SBI System Biosciences

Put exosomes to work—directly transfect JAWS II exosomes with RNA, plasmids, metabolites, or other small molecules for delivery to recipient cells.
  • Easy-to-use with a fast and straightforward loading protocol
  • Introduces a wide range of biomolecules directly into isolated exosomes:
    RNAs, including siRNAs, miRNAs, and mRNAs
    DNAs, including plasmids
    Metabolites and other small molecules
  • RNAs, including siRNAs, miRNAs, and mRNAs
  • DNAs, including plasmids
  • Metabolites and other small molecules

Products

Overview

Putting exosomes to work: Load your cargo directly into isolated exosomes The EV Shuttle Kit harnesses a cell’s natural ability to internalize exosomes for custom cargo delivery. Each kit includes exosomes isolated from either HEK293 cells or JAWS II mouse bone marrow dendritic cells and Exo-Fect—a novel transfection reagent that enables the transfer of RNAs, DNAs (including plasmids), and small molecules directly into isolated exosomes. Use the EV Shuttle Kit for a range of applications including cargo delivery for therapeutic development, virus-free creation of stable cell lines, and gene delivery in hard-to-transfect cells. And then pair your EV Shuttle Kit with our EV-Entry Reagent to maximize cargo delivery.
  • Easy-to-use with a fast and straightforward loading protocol
  • Introduces a wide range of biomolecules directly into isolated exosomes:
    • RNAs, including siRNAs, miRNAs, and mRNAs
    • DNAs, including plasmids
    • Metabolites and other small molecules
  • Enables non-viral transduction and stable cell line creation
  • Provides an alternative gene delivery method for hard-to-transfect cells

How It Works

Quickly and easily load cargo into isolated exosomes

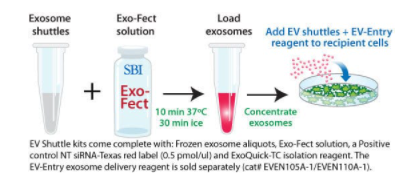

Simply combine the isolated exosomes provided in the EV Shuttle Kit with Exo-Fect Reagent (also included in the Kit) and the nucleic acid or small molecule of your choice to generate exosome delivery vehicles. The Kit comes with all of the reagents you need to load cargo into exosomes and concentrate them for delivery to target cells. The protocol takes less than an hour and is highly efficient at loading cargo into exosomes for transport and delivery.

The EV Shuttle Kit is also compatible with the EV-Entry Reagent, which maximizes cargo uptake by recipient cells.

Supporting Data

See the EV Shuttle System deliver cargo and alter cellular physiology even in hard-to-transfect cells

The EV Shuttle System delivers functional siRNA

Figure 1. Mouse and Human EV Shuttles efficiently deliver siRNA to hard-to-transfect cells. (Left panel set)

JAWS II mouse dendritic cell exosomes were incubated with Exo-Fect and 100 pmol Texas Red-conjugated siRNA (non-targeting control included in the EV Shuttle Kits). The siRNA-loaded EV Shuttles were then added to naive mouse monocyte macrophage cells (RAWS 264.7) in culture.

The cells were imaged after 18 hours and delivery was observed as soon as 4 hours after adding the EV Shuttles. More than 80% of the recipient RAWS 264.7 cells internalized the EV Shuttle siRNA cargo. (Right panel set) Human HEK 293 EV Shuttles were treated with SBI’s Exo-Green Kit (Cat.# EXOG200A-1) which fluorescently labels internal exosome proteins. The labeled Human EV Shuttles were then added to mouse embryonic stem cells and imaged for cargo delivery after 18 hours. The Human EV Shuttles were well-tolerated and the EVs were taken up efficiently by the mouse embryonic stem cells.

Figure 2. EV Shuttles are more efficient at delivering siRNA to hard-to-transfect cells than lipofectamine. Standard Lipofectamine transfection protocols were also compared to Human EV Shuttles on RAWS 264.7 cells using 100 pmol of Texas Red-labeled control siRNA. Fluorescence imaging shows more staining in the EV Shuttle-treated cells than the lipofectamine cells, demonstrating the higher transfection efficiency of the EV Shuttle System.

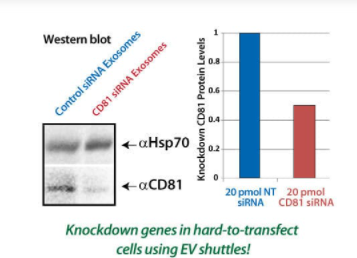

Figure 3. EV Shuttles deliver functional siRNA that can knockdown protein expression in recipient cells.

Human HEK293 EV Shuttles were loaded with either an anti-CD81 siRNA or a non-targeting siRNA (NT) and then added to Mouse RAWS 264.7 cells. The cell lysates were collected after 18 hours for Western blot analysis of CD81 protein expression. EV Shuttles carrying the anti-CD81 siRNA were able to reduce CD81 protein expression in the target cells by at least 50% compared to EV Shuttles carrying the NT control siRNA.EV Shuttles can be used as a non-viral method for generating stable cell lines Because plasmids can be transfected into exosomes with the EV Shuttle System, EV Shuttles can be used to generate stable cell lines without the use of viruses.

Here we show an example using our non-viral PiggyBac Transposon System (Figure 4). Delivery of PiggyBac vectors by EV Shuttles was less toxic than lipofectamine-mediated transfection, resulted in highly efficient integration of the PB transposon vector into the host chromosome, and generated approximately 5-times more colonies than lipofectamine treatment (Figure 5).

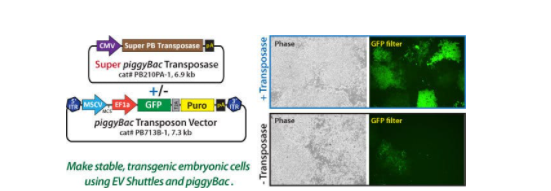

Figure 4. EV Shuttles can be used to generate stable cell lines.

 The Super PB Transposase Expression Plasmid (5 µg) and 5 µg of the PB713B-1 PB Transposon Vector expressing GFP and a puromycin resistance gene were loaded into Human EV Shuttles and then added to mouse embryonic stem cells in culture. ES cells were placed under 0.5 µg/mL puromycin selection for 3 days, and then 1 µg/mL puromycin for an additional 4 days of selection. As a control, EV shuttles were loaded without the Super PB Transposase Vector. Fluorescence imaging shows the successful genomic integration of Human EV Shuttle-mediated PiggyBac transposons into mouse ES cells.
